Conveyor Chains
Southchain Conveyor Chains

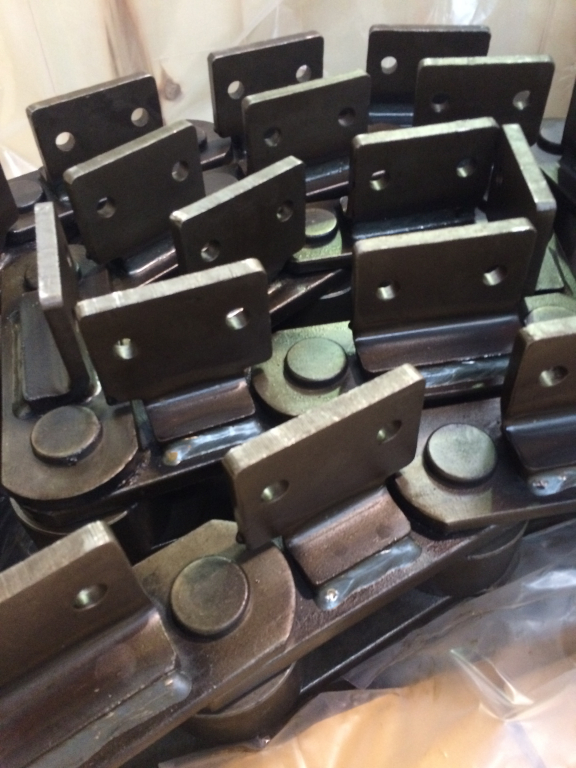

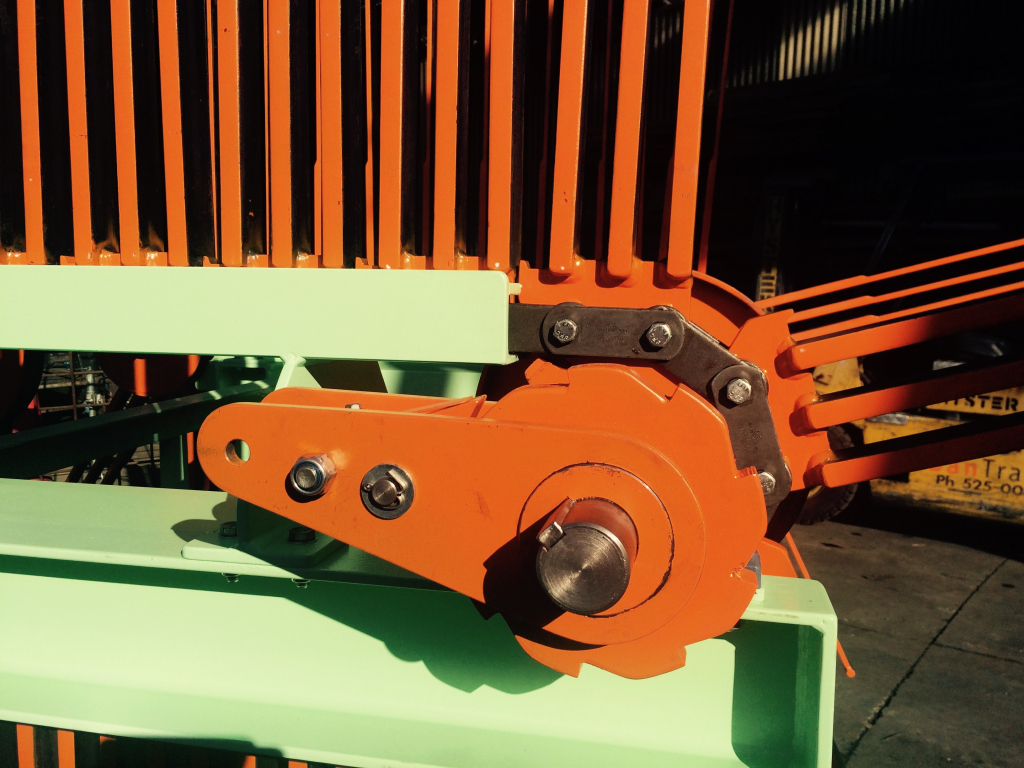

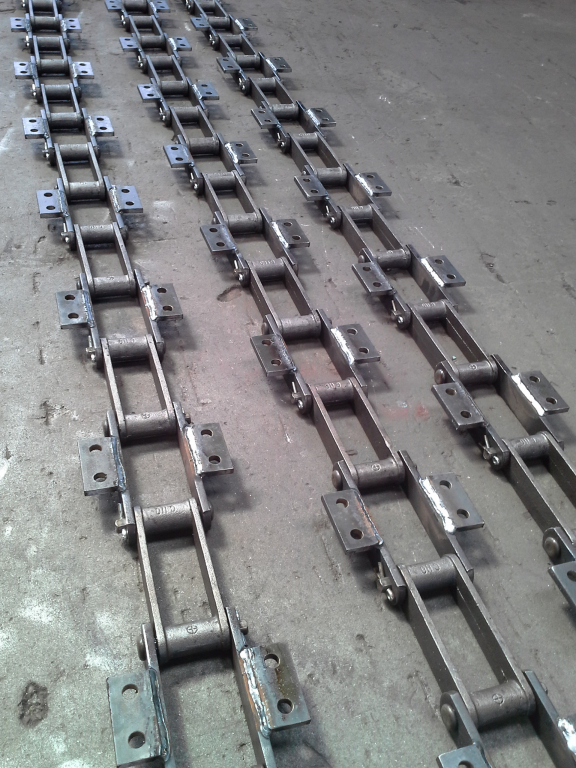

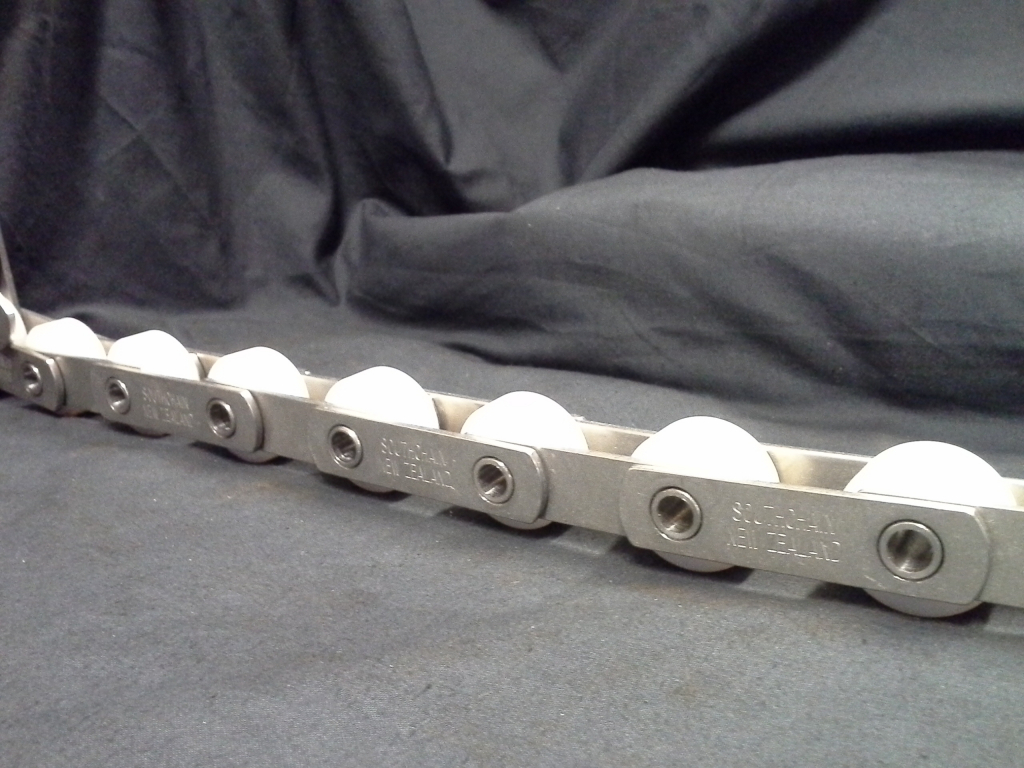

3"Pitch, 4" Pitch, 6"Pitch and 8"P hollow pin or solid pin conveyor chains are often used on bale feeder & feed out wagons. We offer these chains non-coated (often referred to as black), zinc plated which increases the life span of the chain as it will not rust as quickly, or dacromet coated chain which is a aqua proof chain this will prevent rusting even in the damp NZ conditions. These chains can be modified in store with attachments to suit many different applications. If you have a odd ball chain please do not hesitate to get in touch so we can help you. All sprockets are profile cut out and machined specifically for each application.
3"Pitch, 4" Pitch, 6"Pitch and 8"P hollow pin or solid pin conveyor chains are often used on bale feeder & feed out wagons. We offer these chains non-coated (often referred to as black), zinc plated which increases the life span of the chain as it will not rust as quickly, or dacromet coated chain which is a aqua proof chain this will prevent rusting even in the damp NZ conditions. These chains can be modified in store with attachments to suit many different applications. If you have a odd ball chain please do not hesitate to get in touch so we can help you. All sprockets are profile cut out and machined specifically for each application.

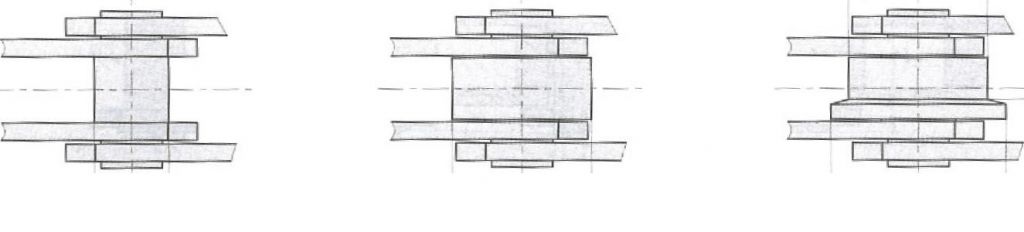

*Solid Pin chain spec drawing below
 | Conveyor Chain.pdf (411 KB) |
.png){kind=spacer}
| Name | Roller Diameter | Width between inner plates | Pin Diameter | Plate Depth | Plate Thickness | Enquire |
|---|---|---|---|---|---|---|
| d1 max | b1 min | d2 max | h2 | T max | ||
| mm | mm | mm | max | mm | ||
| mm | ||||||
| 6,000/7,500lb | 31.75mm | 15.00mm | 14.00mm | 25.00mm | 4.00mm | Enquire |
| 12,000/15,000lb | 47.50mm | 19.00mm | 19.00mm | 40.00mm | 5.00/4.00mm | Enquire |
| 24,000/30,000lb | 66.70mm | 26.00mm | 26.90mm | 50.00mm | 7.00/5.00mm | Enquire |
| 36,000/60,000lb | 88.90mm | 38.00mm | 32.00mm | 60.00mm | 10.00/8.00mm | Enquire |
