Welded Steel Drag Chain
Welded Steel Drag Chains

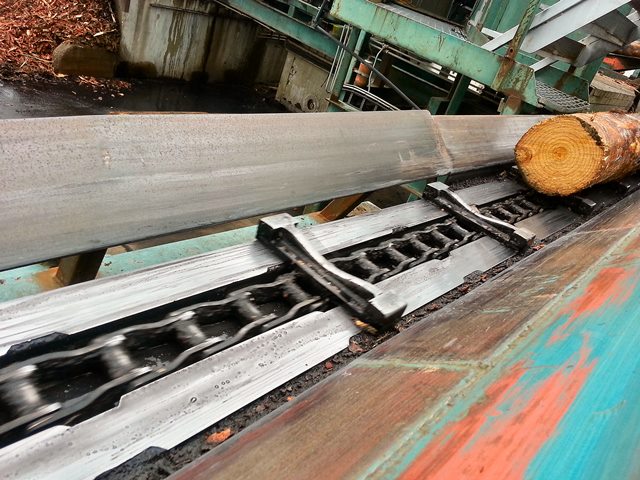

Welded Steel Drag Chains like the common WD110 or WD480 are often used in the timber industry on the log transfer deck. We offer a range of chains like WD110 reverse barrell, WD480XHD (extra heavy duty), WDH (Heat treated rivets, side bars and barrells) in 110, 112, 120 and 480. To finish the package we can also offer full tooth sprockets to suit or just plate wheels.
Welded Steel Drag Chain.pdf (286 KB) |
Name | Pitch | Overall Width | Length of Bearing | Pin Diameter | Side Bar Thickness | Side Bar Height | Max. Sprocket face | Ultimate Strength | Allowable working load | Enquire |
---|---|---|---|---|---|---|---|---|---|---|
in | in | in | in | in | in | in | lbs | lbs | ||
A | B | C | D | E | F | |||||
WD102 | 5 | 9.25 | 7.75 | 0.75 | 0.375 | 1.5 | 6.375 | 51,000 | 10,200 | Enquire |
WD104 | 6 | 6.75 | 5.375 | 0.75 | 0.375 | 1.5 | 4.125 | 51,000 | 10,200 | Enquire |
WD110 | 6 | 11.75 | 10.25 | 0.75 | 0.375 | 1.5 | 9 | 51,000 | 10,200 | Enquire |
WD112 | 8 | 11.75 | 10.25 | 0.75 | 0.375 | 1.5 | 9 | 51,000 | 10,200 | Enquire |
WD113 | 6 | 12.5 | 10.25 | 0.875 | 0.5 | 1.5 | 9 | 67,200 | 13,400 | Enquire |
WD116 | 8 | 15.5 | 14.125 | 0.75 | 0.375 | 1.75 | 13 | 51,000 | 10,200 | Enquire |
WD118 | 8 | 16.625 | 14.875 | 0.875 | 0.5 | 2 | 13.25 | 70,000 | 14,000 | Enquire |
WD120 | 6 | 12 | 10.25 | 0.875 | 0.5 | 2 | 8.75 | 70,000 | 14,000 | Enquire |
WD122 | 6 | 12 | 10.25 | 0.875 | 0.5 | 2 | 8.75 | 70,000 | 14,000 | Enquire |
WD480 | 8 | 14.5 | 12.75 | 0.875 | 0.5 | 2 | 11 | 70,000 | 14,000 | Enquire |
WD480XHD | 8 | 15.25 | 11 | 1 | 0.625 | 2 | 11 | 122,000 | 24,400 | Enquire |
